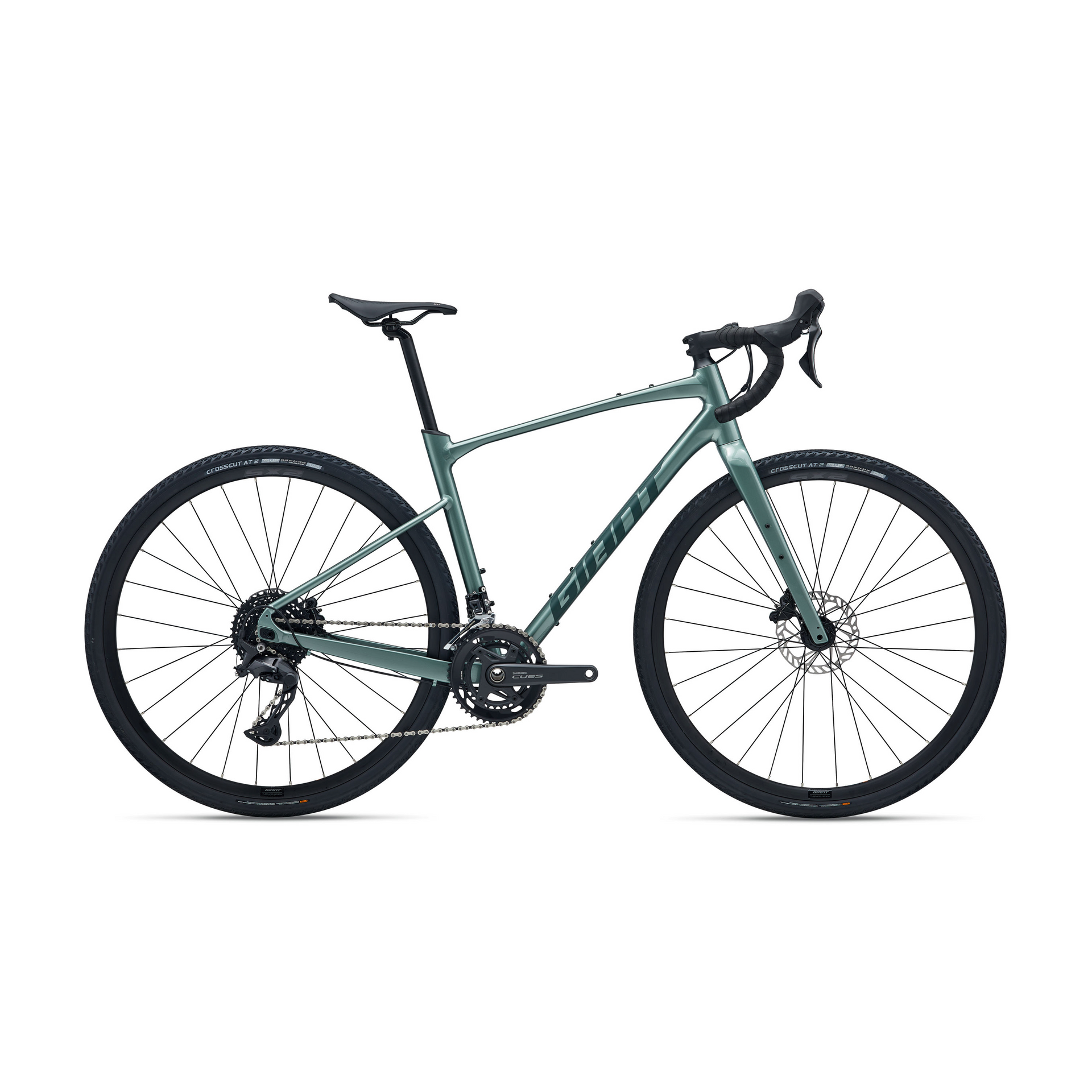

Ride roads, gravel or dirt with this versatile aluminium all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tyre clearance.
Key Performance Factors
Confident handling
Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance
Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

SIZES XS, S, M, M/L, L, XL
COLOURS Alpine Green
FRAME ALUXX-grade aluminium, 12x142mm thru-axle, disc, flip chip dropout
FORK Advanced-grade composite, full-composite OverDrive steerer, 12mm
thru-axle, disc
COMPONENTS
HANDLEBAR Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm,
L:46cm, XL:46cm
GRIPS Cork tape with gel
STEM Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm,
L:80mm, XL:90mm
SEATPOST Giant D-Fuse, alloy, 14mm offset
SADDLE Giant Grit
PEDALS N/A
DRIVETRAIN
SHIFTERS Shimano CUES U6030, 2x10
FRONT DERAILLEUR Shimano CUES U6030
REAR DERAILLEUR Shimano Cues U6020, Shadow+
BRAKES Shimano CUES U6030 hydraulic, Giant MPH rotors [F]160mm,
[R]160mm
BRAKE LEVERS Shimano CUES U6030 hydraulic
CASSETTE Shimano CS-LG300, 11x39
CHAIN KMC X11
CRANKSET Shimano Cues U6030-2, 32-46 XS:170mm, S:170mm, M:172.5mm,
M/L:172.5mm, L:175mm, XL:175mm
BOTTOM BRACKET Shimano, threaded
WHEELS
RIMS Giant S-X2 Disc wheelset, alloy
HUBS Giant alloy, 12mm thru-axle
SPOKES Stainless
TIRES Giant CrossCut AT 2, 700x38c, tubeless
EXTRAS Tubeless prepared, 53mm max tyre size in "long" flip chip position,
45mm max tyre size in "short" flip chip position
LIMITS
MAX TYRE CLEARANCE 53mm
