Description
rim width for gravel bike Disc Carbon CX/Gravel Rim - Wave Shape 35mm/40mm DeepProduct Item: W25 3540H wave disc gravel bike 25mm internal width 35~40mm deep hookless rim 380g Featuring a wide 25mm internal rim width, new wave profile offers significant performance benefits: it reduces aero drag, more laterally stiff, and has greater impact resistance. Rim Specs Rim Model W25 3540H Material Toray T700 & T800 premium carbon fiber Size 700C 29 (ETRTO 622mm) Intended Use CX Gravel Bead Type Hookless Tubeless Capable Yes Inner Outer

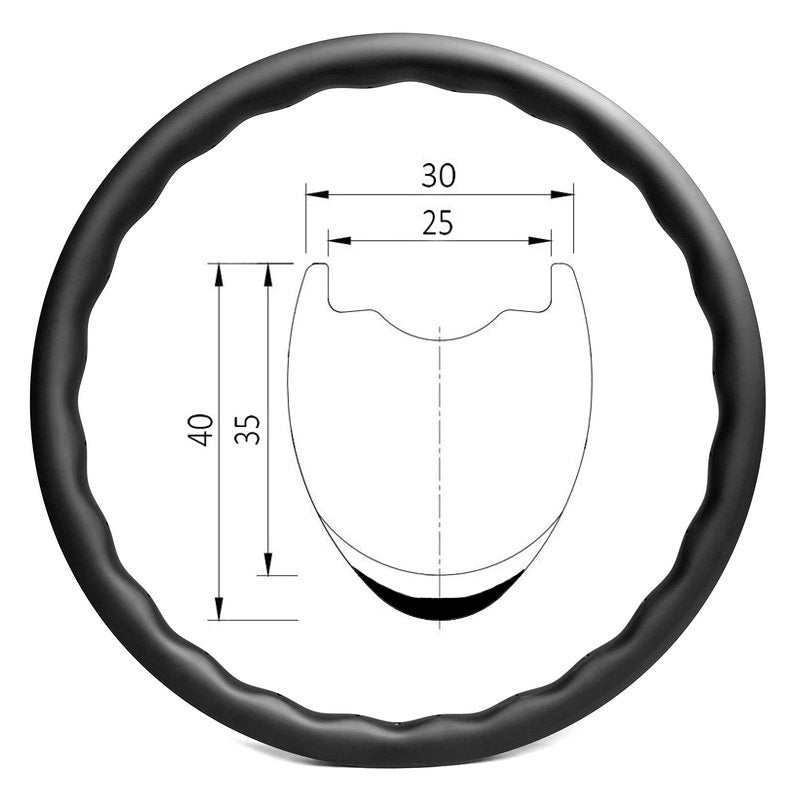

Product Item: W25-3540H wave disc gravel bike 25mm internal width 35~40mm deep hookless rim - 380g
Featuring a wide 25mm internal rim width, new wave profile offers significant performance benefits: it reduces aero drag, more laterally stiff, and has greater impact resistance.
Rim Specs
| Rim Model | W25-3540H |
| Material | Toray T700 & T800 premium carbon fiber |
| Size | 700C / 29” (ETRTO 622mm) |
| Intended Use | CX/Gravel |
| Bead Type | Hookless |
|
Tubeless Capable |
Yes |
| Inner/Outer Width | 25mm/30mm |
| Depth | 40mm |
| ERD | 565mm (including nipple head dimension) |
| Weight | 380g±15 |
| Offset | 0mm (symmetric) |
|
Max Cyclist Weight (on flat ground) |
120kgs / 265lbs |
| Spoke Hole Angle | ±7° |
| Spoke Tension | 110~130kgf (recommended) |
| Tire Pressure (with 28C) |
65psi / 4.48bar (recommended max) |
| Tire Size | 30C ~ 50C (recommended) |
| Warranty | 5 years |
All wheels are 100% customizable at Carbonal Bike Factory. If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.
