Description

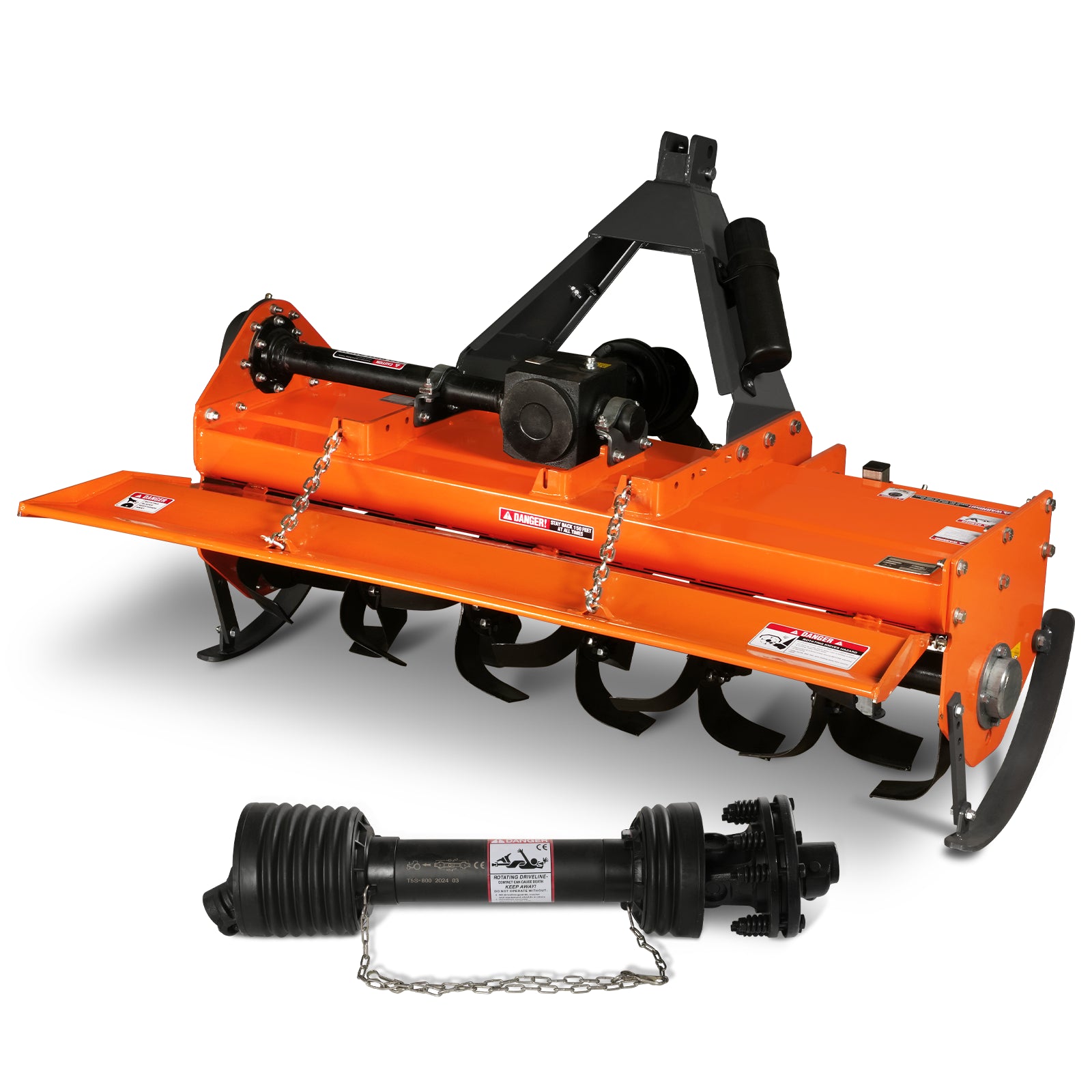

point gear 5FT 3-Point Gear Drive Rotary Tiller, 25-50HP Tractor, PTO Shaft IncluPower Required 25 50HP Main Gearbox ASAE 1 3 8 6 spline shaft, proven cast iron, oil bath gearbox; ratio is 1. 69: 1 Working Width 60in Drive Gear Ratio 1: 52: 1 Overall Width 66in Gearbox Oil Type SAE 85W 90 Working Depth 1in,2. 1in,3. 1in,5. 1in Deck Thickness 0. 16in Number Of Flanges 7 Side Plate Thickness 0. 31in Number Of Blades 36 PTO Shaft RPM 540 RPM Blade Type C type PTO Shaft T4 31in 8 Bolt non removable slip clutch Blade Material 60SI2MN
| Power Required | 25-50HP | Main Gearbox | ASAE 1- 3/8″ – 6 spline shaft, proven cast iron, oil bath gearbox; ratio is 1.69:1 |
| Working Width | 60in | Drive Gear Ratio | 1:52:1 |
| Overall Width | 66in | Gearbox Oil Type | SAE 85W-90 |
| Working Depth | 1in,2.1in,3.1in,5.1in | Deck Thickness | 0.16in |
| Number Of Flanges | 7 | Side Plate Thickness | 0.31in |
| Number Of Blades | 36 | PTO Shaft RPM | 540 RPM |
| Blade Type | C type | PTO Shaft | T4-31in 8 Bolt non-removable slip clutch |
| Blade Material | 60SI2MN | Spline End | 1.375in X Z6 |
| Rotor bearing | NSK bearing | 3-Point Hitch | CAT 1/2 |
| Rotor Diameter | 3in | Deflector | Rear Hinged |
| Rotor Swing Diameter | 19.5in | Finish | Powder Coating |
| Rotor Thickness | 0.3in | Dimensions (L x W x H) | 66 X 31.5 X 30.7in |
| Rotor Shaft Speed | 215 RPM | Warranty | 1 year |
| Rotor Rotation | Forward | Net Weight | 690lbs |
| Drive Type | Gear Drive | Gross Weight | 793lbs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
