helix stomp expression pedal Line 6 Helix HX Stomp multi-effects processor

helix stomp expression pedal Line 6 Helix HX Stomp multi-effects processorHX Stomp is a professional grade processor that delivers the sound of Helix amps, cabs, and effects in an ultra compact pedal. Whether you prefer to play through a traditional amp and pedal setup, or go direct onstage or in the studio, HX Stomp seamlessly integrates into a variety of environments and applications. Utilizing the same DSP and HX Modeling technology as the bigger Helix LT and Floor pedals, the much smaller HX Stomp guitar pedal fits

HX Stomp is a professional-grade processor that delivers the sound of Helix® amps, cabs, and effects in an ultra-compact pedal. Whether you prefer to play through a traditional amp-and-pedal setup, or go direct onstage or in the studio, HX Stomp seamlessly integrates into a variety of environments and applications.

Utilizing the same DSP and HX™ Modeling technology as the bigger Helix LT and Floor pedals, the much smaller HX Stomp guitar pedal fits easily onto your pedalboard, or even in the pocket of your gig bag.

There are over 300 amps, cabs, and effects—including a looper. HX Stomp contains all the same HX models found in Helix family products, as well as the legacy effects library from Line 6® M-Series pedals, and stompbox modelers such as the DL4™. Use it as a "super stompbox," a backup or travel rig, an add-on tone expander when combined with other modelers, an audio interface—or even a complete guitar or bass rig.

Super stompbox

Barely larger than many conventional pedals, HX Stomp features over 300 amps, cabs, and effects from Helix, M-Series, and legacy Line 6 products—up to six simultaneously. Three capacitive-sensing footswitches with color-coded LED rings facilitate easy preset selection and editing. Connect optional footswitches and expression pedals for even greater control, and integrate your favorite pedals into any preset’s signal path by patching them into the two effects loops. You can also dial in amps and effects, save and load presets, and much more with the free HX Edit application

Backup or Travel Rig

HX Stomp is both a complete backup solution and the ultimate travel rig. Go direct to FOH or to any backline amp with ease—even use 4-Cable Method. Access up to six amp, cab, effect, and IR blocks simultaneously, so you’ll never have to worry about getting the tones you need. You’ll even be able to lay down tracks in your hotel room after the show using the built-in audio interface.

USB Audio Interface

With a generous 123dB of dynamic range, HX Stomp doubles as an ultra-low noise DSP-powered USB audio interface, offering 24-bit/96kHz multi-channel audio—and MIDI connectivity—for Mac and Windows computers. There’s also a flexible input impedance circuit for realistic amp and pedal response, and built-in DI and re-amping capabilities. Adding the optional Apple Camera Connection Kit enables you to record directly to your Apple iPhone or iPad.

Resources

View or download the HX Stomp Cheat Sheet PDF

View or download the HX Stomp 'Pilot's Guide' PDF

View or download the HX Stomp Manual PDF

Connections

• Stereo TS ins and balanced TRS outs
• TRS expression pedal/footswitch jack: connect one or two external expression pedals, e.g. volume and wah

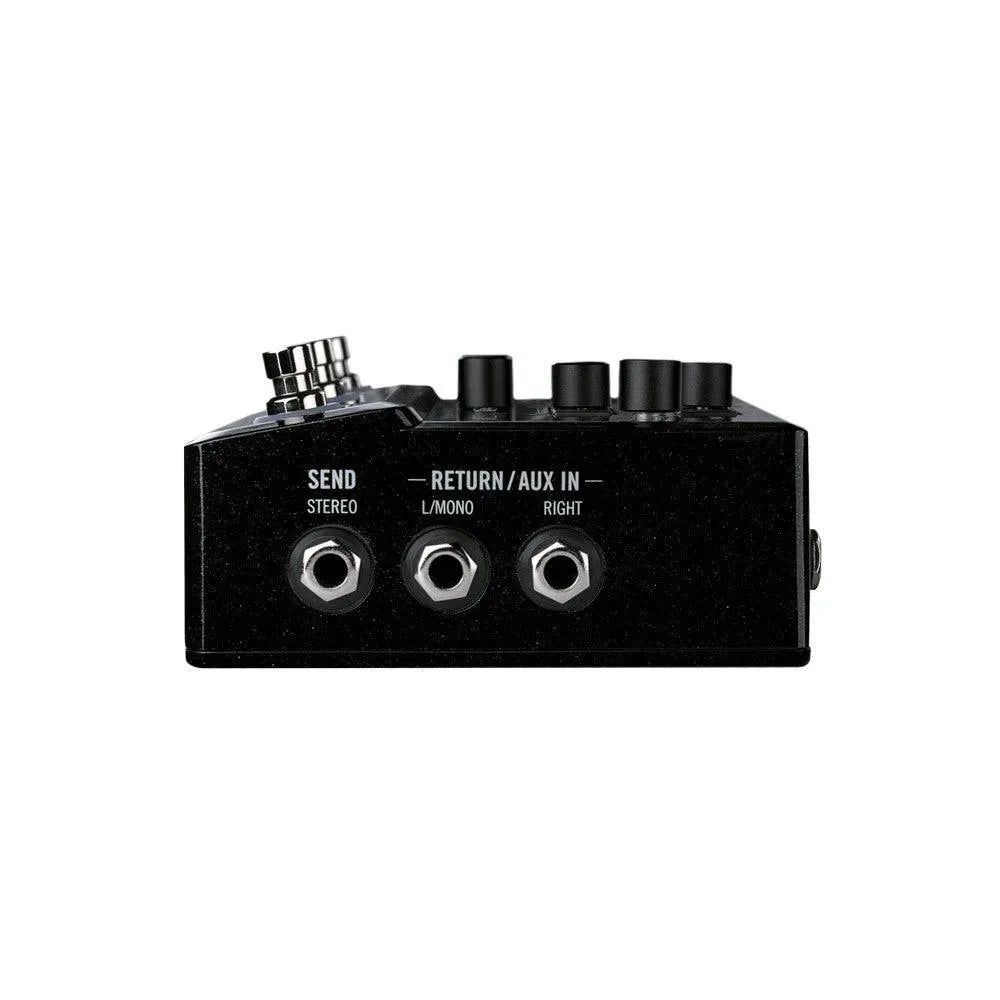

• FX loop: add other effects pedals to your chain
• USB connection: connect to your computer to manage patches, update firmware, or record into your DAW
• MIDI in/out (for MIDI switchers only-not compatible with MIDI violin outputs)

Specs

• Software: HX Editor
• Compatibility: Windows, macOS
• Power Source: 9V DC power supply (included)
• Height: 2.6"
• Width: 7.01"
• Depth: 4.96"
• Weight: 1.75 lbs.
